BM-M1 Series
BM-M1 Series

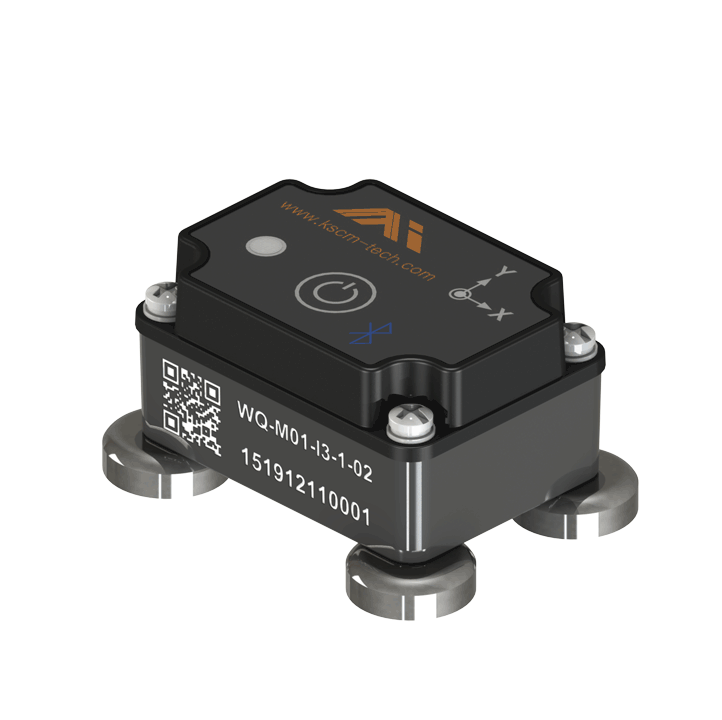

BM series is a low energy bluetooth communication 3-axis digital intelligent vibration sensor , equipped with a high-efficiency micro-controller with edge computing capability , which accurately and faithfully displays the vibration state of the device during operation.
The communication adopts Bluetooth 5.0 wireless technology , and the real-time data of the device can be easily obtained through a smart phone or a tablet , allowing you to make early countermeasures.
In order to avoid the expansion of equipment damage and the loss of production line downtime , the BM series is definitely your right-hand man at work.
Introduction
- Bluetooth low energy 5.0
- Save expensive and complicated line layout costs
- The connection is simple , and timely data can be easily obtained through a smartphone or tablet
- Low energy consumption , built-in high-capacity battery to maintain long-term battery life
- High-precision 3-axis accelerometer and high-precision temperature sensor
- Multiple edge calculation vibration data：Feature , FFT , ISO10816
- With color LED indicator , it can clearly distinguish the operating status of the sensor
- It can be used with OCELOT series software for vibration monitoring and analysis
- Industrial grade hardware design provides excellent stability and extremely low power consumption
- BM series adopts aluminum alloy shell and plastic upper cover
- Small size and easy to install
- Dust-proof water grade IP66
BM-M11 Series：
- Measurement Range：±2g , ±4g , ±8g , ±16g
- Sensitivity：0.244@±2g , 0.488@±4g , 0.976@±8g , 1.952@±16g (mg/LSB)
- Bandwidth：1kHz
- Axial：3 Axes
BM-M12 Series：
- Measurement Range：±2g , ±4g , ±8g , ±16g
- Sensitivity：0.061@±2g , 0.122@±4g , 0.244@±8g , 0.488@±16g (mg/LSB)
- Bandwidth：6kHz , simulation to 10 kHz
- Axial：3 Axes
Other Parameters：
- Measurement Temperature：-10 ~ +85℃
- Battery：DC3.6V 400mAh , rechargeable li-ion battery (300 charging cycles)
- Communication Protocol：Bluetooth low energy , distance about 10 ~ 50M
- Data Format：Feature , FFT , ISO10816
- Data Feature：Mean , Standard Deviation , RMS , Crest Factor , Skewness , Kurtosis , Peak to Peak , Form Factor , Min , Max and Contact Temperature
- Installation Method：M4 screw fixing / super strong magnets
- Maximum Impact：10,000g
- Dimension W x D x H：50 x 36 x 25 mm , without magnets
- Shell Material：shell：aluminum alloy , upper cover：plastic
- Weight：95g±5%
- Working Temperature：-10 ~ +85℃ (-10 ~ +55℃ recommended temperature to ensure battery life)
- Storage Temperature：-10 ~ +85℃
- Working Humidity：0 ~ 95%
- Water & Dust Resistance：IP66
- Machine Monitoring：Machine tools , Production line , Motor , Pump
- Public Transportation System：Metro , High speed rail , Train
- Public Facilities Monitoring：Building structural , Bridge , Elevator , Escalator
- Power Generation System：Wind power , Solar power
- Environmental Safety Monitoring：Flood , Seismic monitoring , Slope and rocks monitoring
