KSB-M0 Series
KSB-M0 Series

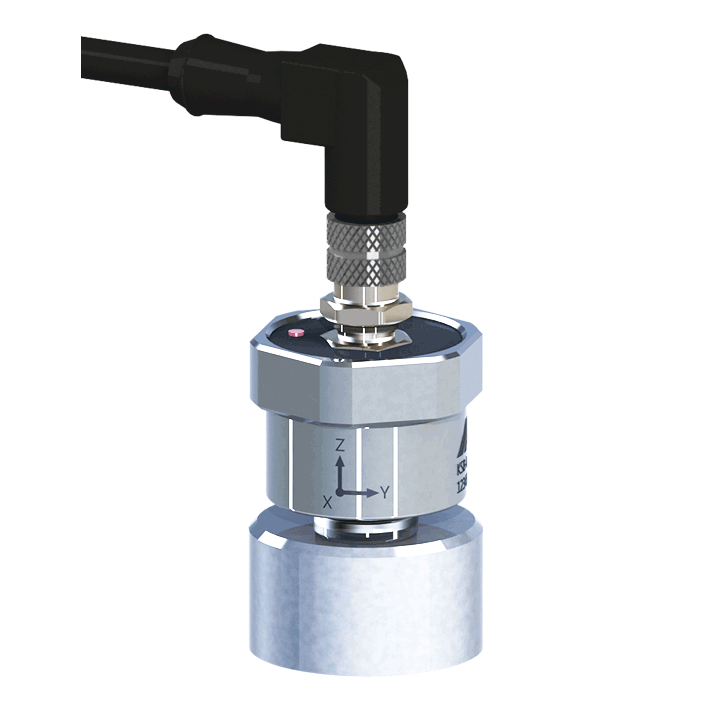

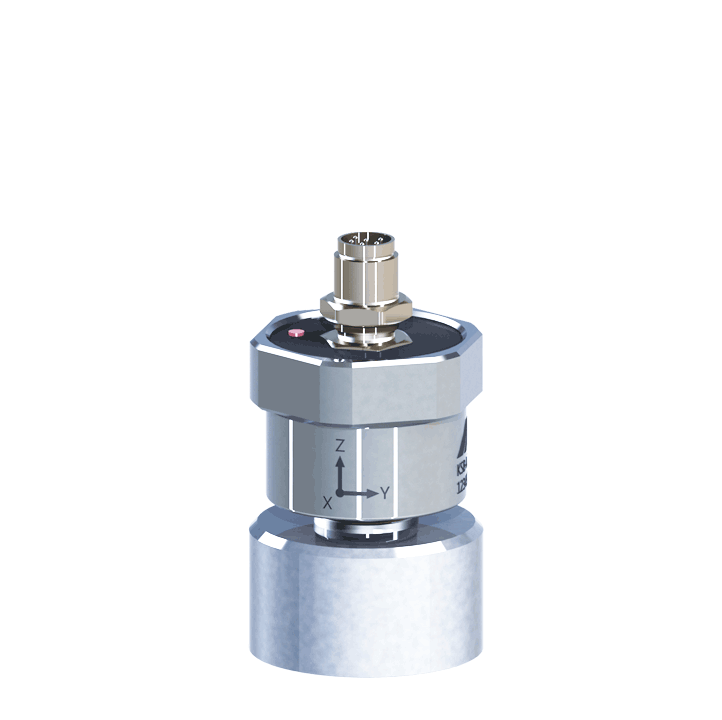

KSB Series is a digital intelligent sensor with 3 axis MEMS accelerometer and temperature sensor.
The Latest MEMS technology and high-efficiency edge computing function are used in this sensor to provide excellent sensitivity and reliability.
This sensor majorly applied for detecting and analyzing the abnormal condition to prevent unpredictable event , accident and downtime losses.
Introduction
- High accuracy , stability and low power consumption
- Output formats：Feature , Raw data , FFT and ISO10816
- 3 communication protocol：RS232 / RS422 / RS485RTU
- Assort with OCELOT series software for vibration monitor and analysis
- Equipped with LED status light
- Industrial IP67-rated
- Corrosion & Weather resistant
- Easy to install , effectivity reduce resonance effect by Epoxy Potting compound method
KSB-M01~03：
- Measurement Range：±2g , ±4g , ±8g , ±10g , ±20g , ±40g
- Sensitivity：3.9@±2g , 7.8@±4g , 15.6@±8g , 19.5@±10g , 39@±20g , 78@±40g (μg/LSB)
- Bandwidth：1kHz
- Axial：3 Axes
KSB-M04~06：
- Measurement Range：±2g , ±4g , ±8g , ±16g
- Sensitivity：0.061@±2g , 0.122@±4g , 0.244@±8g , 0.488@±16g (mg/LSB)
- Bandwidth：6kHz , simulation to 10 kHz
- Axial：3 Axes
KSB-M07~09：
- Measurement Range：±50g , ±100g
- Sensitivity：40@±50g , 20@±100g (mV/g)
- Bandwidth：10kHz
- Axial：1 Axis
Other Parameters：
- Measurement Temperature：-10 ~ +105℃
- Consumption Current @ Operating Voltage：M01~06：DC 5 ~ 30V / 10mA@24VDC below , M07~09：DC 10 ~ 30V / 10mA@24VDC below
- Communication Protocol：RS-232C , RS-422 , RS-485 MODBUS RTU
- Data Format：Feature , Raw Data , FFT , ISO10816
- Data Feature：Mean , Standard Deviation , RMS , Crest Factor , Skewness , Kurtosis , Peak to Peak , Form Factor , Min , Max and Contact Temperature
- Installation Method：M6 screw fixing / super strong magnets
- Maximum Impact：10,000g
- Dimension W x D x H：28 x 26 x 40.7 mm , without magnets & cable
- Shell Material：SUS stainless steel
- Weight：40g±5%
- Working Temperature：-10 ~ +85℃
- Storage Temperature：-20 ~ +100℃
- Working Humidity：0 ~ 95%
- Water & Dust Resistance：IP67
- Machine Monitoring：Machine tools , Production line , Motor , Pump
- Public Transportation System：Metro , High speed rail , Train
- Public Facilities Monitoring：Building structural , Bridge , Elevator , Escalator
- Power Generation System：Wind power , Solar power
- Environmental Safety Monitoring：Flood , Seismic monitoring , Slope and rocks monitoring
