CGB-M0 Series
CGB-M0 Series

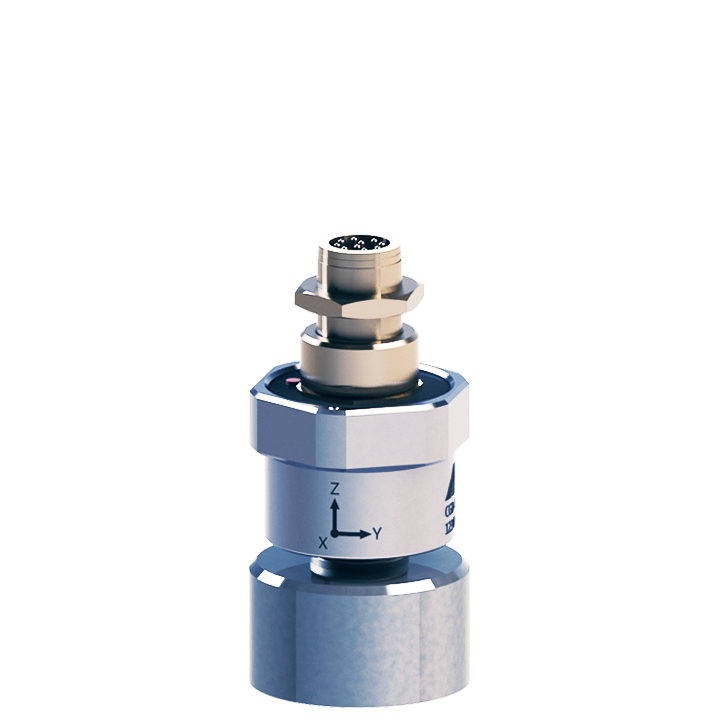

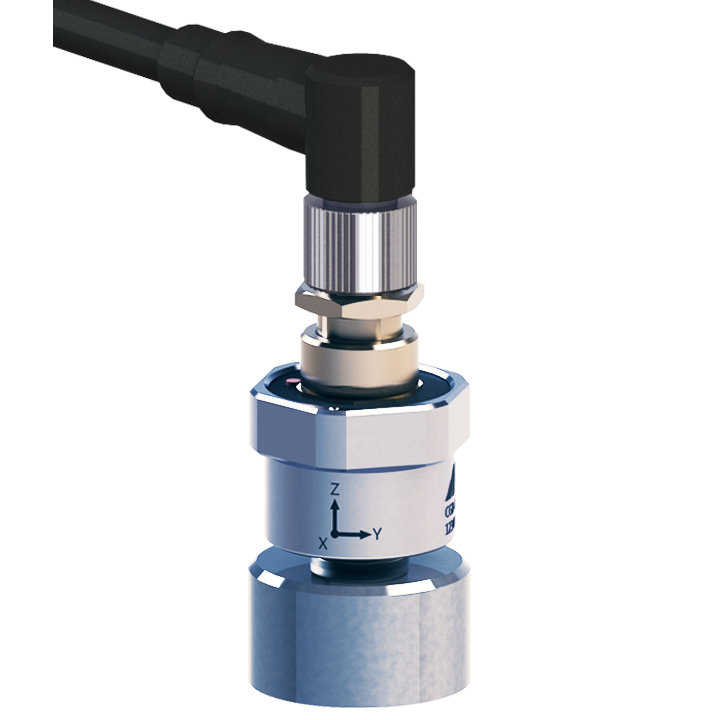

CGB series sensor was designed for protecting the machine from crash that caused by machine spindle or turret / toolholder collides with the workpiece.

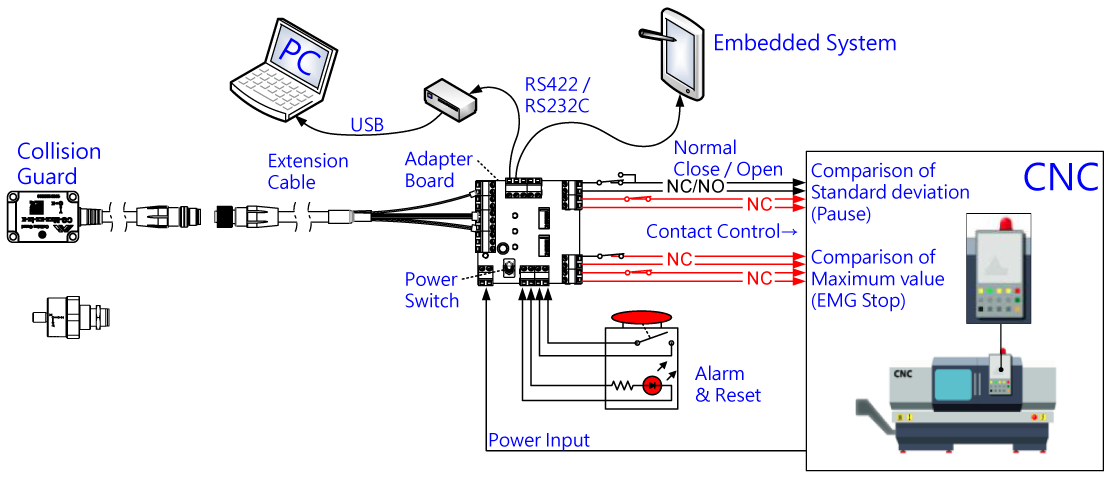

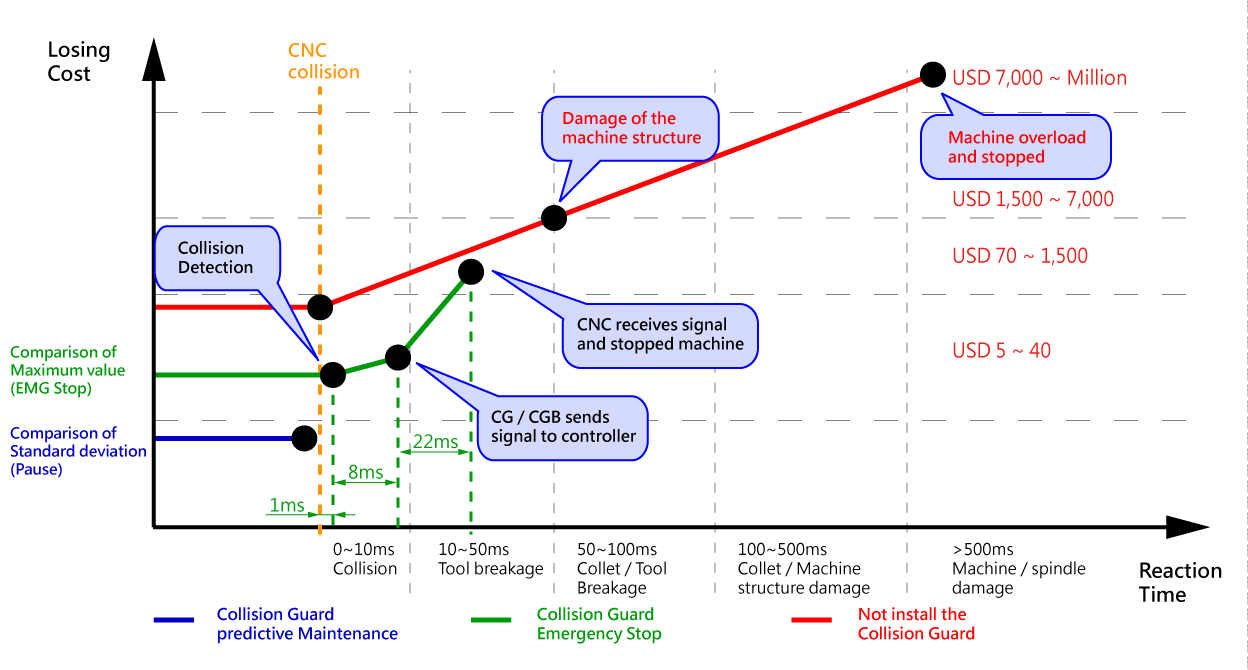

When the unpredictable event happens , the protection system will connect with the CNC panel immediately and force the machine shut down to prevent from downtime losses.
This system can also utilize for the moving system such as machine arms.
Introduction
- Equipped with a high accuracy 3 axis MEMS accelerator and a temperature sensor
- Provide maximum value and standard deviation value for threshold comparison (Fault Detect & Predictive Maintenance)
- The machine tools can be protected by recording and analysis the data form the “learning mode” in the OCELOT Software
- The inbuilt memory can store up to 100 abnormal events
- Equipped with an edge computer to detect the abnormal events , and provide high accuracy and the reaction time
- Assorted with OCELOT series software (CNC ONLINE / CNC OFFLINE)

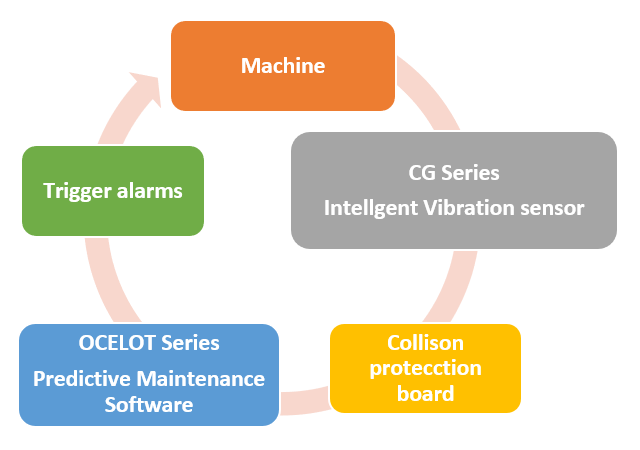

- The system records the real time vibration feature during manufacturing process for data analysis , and the health state of the machine spindle is predicted by the AI analysis technique
- CNC ONLINE software can detect tool breakage and evaluated the tool wear and fault monitoring
- Assorted with a high-speed adapter board and easy mounting
- The warning lighting and the reset function are designed and improve the user experience
- Equipped with multi-colour LED indicator light to clearly distinguish the operating status of the sensor
CGB-M01~M03：
- Measurement Range：±2g , ±4g , ±8g
- Bandwidth：1kHz
- Axial：3 Axes
CGB-M04~M06：
- Measurement Range：±2g , ±4g , ±8g , ±16g
- Bandwidth：6kHz , simulation to 10 kHz
- Axial：3 Axes
Other Parameters：
- Measurement Temperature：-10 ~ +105℃
- Consumption Current @ Operating Voltage：DC 24V±10% / 10mA@24VDC below
- Communication Protocol & Baud Rate：RS-232C , RS-422 , RS-485 MODBUS RTU
- Installation Method：M6 screw fixing / super strong magnets
- Maximum Impact：10,000g
- Dimension W x D x H：28 x 26 x 47.3 mm , without magnets & cable
- Shell Material：SUS stainless steel
- Weight：50g±5%
- Working Temperature：-10 ~ +85℃
- Storage Temperature：-20 ~ +100℃
- Working Humidity：0 ~ 95%
- Water & Dust Resistance：IP67
- Machine spindle protection & predictive maintenance for the milling machine or manufacturing factories
- Turret or toolholder protection for the lathes machine
- Moving edge detection and predictive maintenance for the robotic arms
- Industrial courier system detection and predictive Maintenance system
- Tool wear RUL System
- Vibration analysis for machine tools
